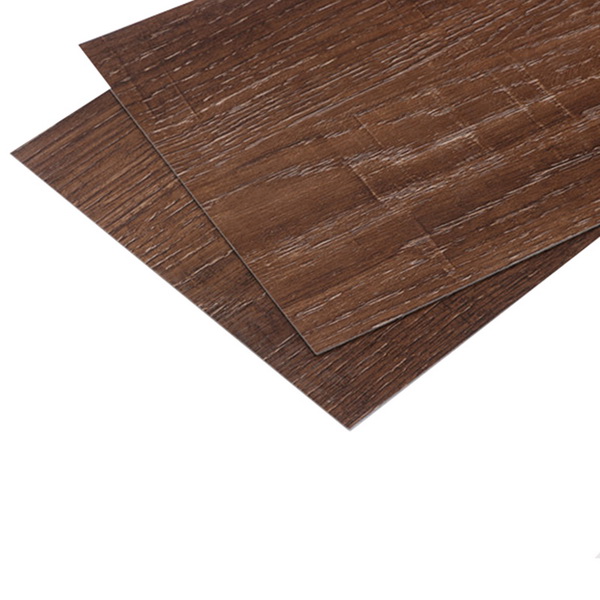

Vinyl Flooring Dry Back

LVT structure

LVT flooring specification

Material	100% virgin material
Thickness	2mm(can be custom made3.5mm-5mm)
Size	1831220mm(152914mm, 229*1220mm, or custom make)
Top wearlayer	0.15mm/6mil ( can be custom make 0.07mm-0.6mm)
warranty	7 years for residental
Color	Hundreds of color designs available
Installation	Dryback
Surface treatment	UV coating
Special treatment	Deep embossed EIR,
Design style	wood grain, stone, marble, carpet

LVT flooring packing

Pcs/box	24pcs
weight/box	19.2kgs
boxes/pallet	60 boxes
Pallet size	1240990980mm
Pallets/20'FCL	18 pallets
Sqm/20'FCL	5786 square meters
Weight(kgs)/20'FCL	20736kgs

EC7234-1

7231_调整大小 - 副本

EC7231

7234-6_调整大小 - 副本

EC7234-6

7284-5_调整大小 - 副本

EC7284-5

7222_调整大小 - 副本

EC7222

7220-5_调整大小 - 副本

EC7220-5

7220-4_调整大小 - 副本

EC7220-4

7220-1_调整大小 - 副本

EC7220-1

7172-4_调整大小 - 副本

EC7172-4

7152_调整大小 - 副本

EC7152

EC7150

7142_调整大小 - 副本

EC7142

Popular size For LVT

LVT SIZE

Installation Methods for LVT flooring

LVT installation

100% waterproof, Stain-resistance

Fireproof

Anti-Scratch

Easy to Installation

H15e8dd52da6b4c5c8f00ff324254bb176.jpg_

Physical Requirements

Characteristics	Test Method	Test requirements	Verdict
Size ≤305mm	EN427	± 0.4mm	pass
305mm˂size˂457mm	EN427	± 0.45mm	pass
457mm˂size˂610mm	EN427	± 0.50mm	pass
610mm˂plank length ˂1220mm	EN427	± 1.5mm	pass
Plank length ≥1220mm	EN427	± 2.0mm	pass
Squareness		≤ 0.25mm	pass
Thickness， product without foam	EN428	± 0.13mm	pass
Thickness， product with foam	EN428	± 2.0mm	pass
Thickness，wearlayer	EN429		pass
Density kgs/m³		1.8
80℃ 6H Heating Curling		lengthwise ±1mm	0.05-0.07mm
80℃ 6H Heating Curling		Horizontal ±1mm	0.05-0.07mm
80℃ 6H Heating shrinkage		lengthwise ＜0.1%	0.03-0.05%
80℃ 6H Heating shrinkage		Horizontal ＜0.1%	0.04-0.06%
一25℃ 6H Low Temperature Warping		lengthwise ±1mm	0.1-0.15mm
一25℃ 6H Low Temperature Warping		Horizontal ±1mm	0.1-0.15mm
Locking Strength		lengthwise ＞180N	190-210N
Locking Strength		Horizontal ＞200N	220-240N
Peel Strength		Lengthwise ＞100N/5cm	107-121N
Peel Strength		Horizontal ＞100N/5CM	138-144N
Gapping		≤0.10	0.01-0.03mm
Difference of Height		≤0.10	0.01-0.03mm
Scratch Resistant		≥2800g	pass
Martindale		≤2	pass
Foot Wheelchair test	EN425	5000rpm	pass
Residual Imprint	EN 433	≤0.12 mm	pass

Characteristics

100% water proof		IPX8
Fire Resistance	EN13501-1	class Bfi-S1
Core free of Formaldehyde	EN717-1	E0
Slip Resistance	EN51 130	Class DS R9
Soundproof	EN ISO 717/2	63
Chemical Resistance	EN423	Class 0
