SPC/WPC/PVC Quarter round

Flooring accessories/ Flooring trim-Quarter Rounds can be made by SPC,PVC,WPC.
100% virgin materials
Quarter Rounds are used to conceal the required expansion space between the wall and the flooring.

  • EH-QR3-KW001
  • Eco Home

Category:  Flooring trims

Product :    Quarter Round

Material: SPC/ Stone Plastic Composite

Quarter Rounds are used to conceal the required expansion space between the wall and the

laminate flooring. Available as Standard or Moisture Resistant.

Surface Material: wearlayer+decorative film

Core Material: PVC/WPC/SPC

Core MaterialSPC
Wearlayer 0.1mm
Product width(mm)28mm
Product thickness(mm) 15mm
Product length(mm)2400mm/94"
For flooring thicknessFor all the thickness
Residential Warranty in years5
Commercial Warranty in years2
Quantity per carton (pcs)25
Packing size (L*W*H) cm242*12.5*9cm
CBM per carton0.027CBM

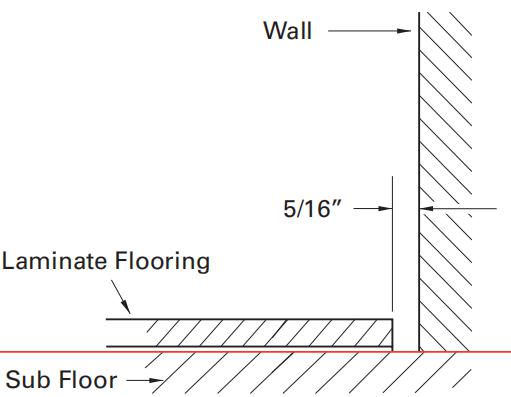

Step 1

Leave a gap between the wall and

the floor as suggested by the manufacturer

of the floor, but no more than 1/2" to allow

the molding to sit on the floor!

Quarter round 1

Step 2

Apply one thin bead of adhesive to the back of the

Quarter Round  and attach it to the Wall Base Molding and support it with a heavy object until  the adhesive has cured so it wont pop off the Wall Base Molding

Quarter round 2

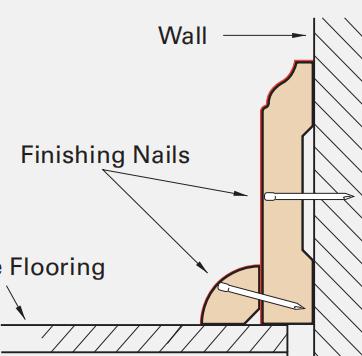

Step 3  Optional Step

Use finish nails in the Wall Base

Molding every 16”and also through the Quarter Round or Base Shoe and into the Wall Base Molding.Be sure to pre-drill all holes. Finish up the nails with a color matching Color Fill!

Quarter round 3

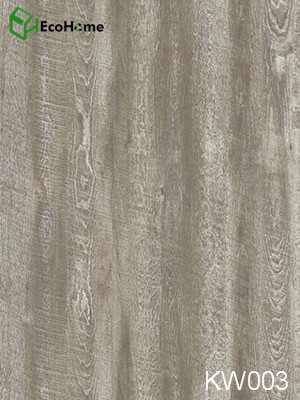

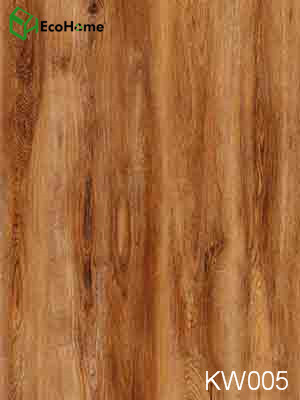

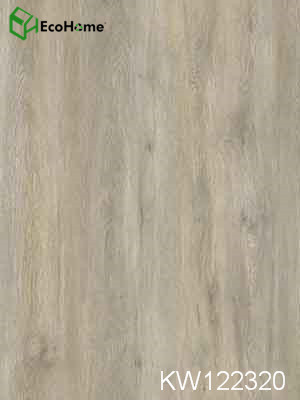

flooring trims01flooring trims03flooring trims02flooring trims04flooring trims06flooring trims07flooring trims08
