You are here: Home / Products / Flooring Trims / Stairnose / SPC Overlap Stair Nose

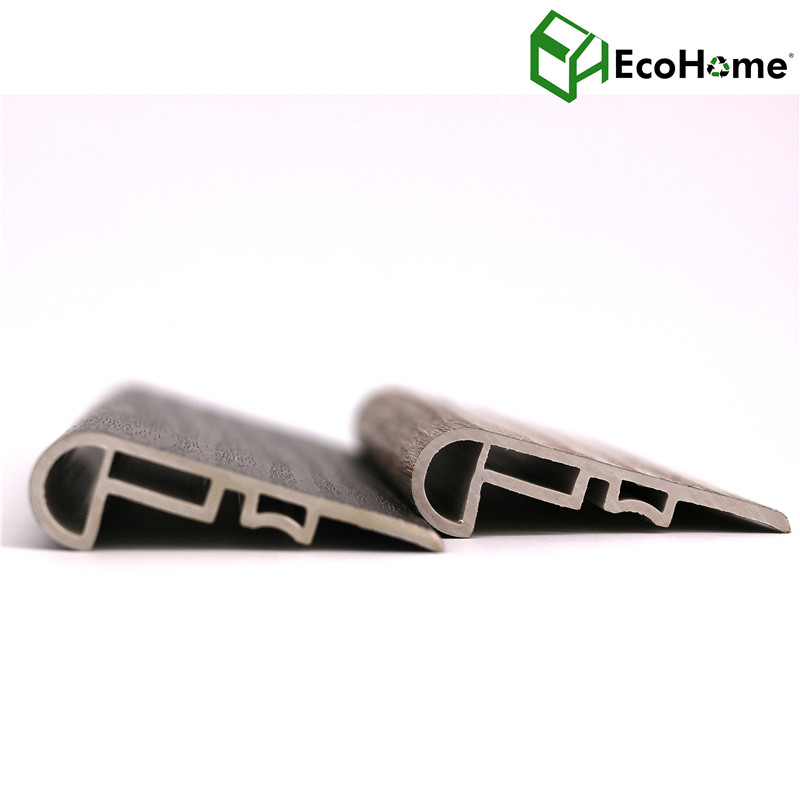

SPC Overlap Stair Nose

Flooring accessories/ Flooring Trims for vinyl flooring
SPC overlap stairnose, 100% virgin materials
The Landing Stair Nose combines style and function to enhance the beauty of a staircase or step

Quantity:
  • EH-SN2-KW122320
  • Eco Home

category:  Flooring trim

Product :  Overlap stairnose


The Landing Stair Nose combines style and function to enhance the beauty of a staircase or step

Surface Material: Wearlayer+decorative film

Core Material: PVC/WPC/SPC



Overlap Stairnose drawing


Core Material PVC/WPC/SPC
Wearlayer  0.3mm/12mil
Product width(mm) 55mm
Product thickness(mm)  18mm
Product length(mm) 2400mm/94"
For flooring thickness 4-6mm
Residential Warranty in years 5
Commercial Warranty in years 2
Quantity per carton (pcs) 20
Packing size (L*W*H) cm 242*14*16
CBM per carton 0.054CBM

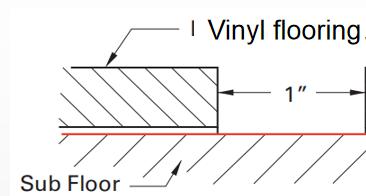

Step 1


Install the flooring planks including the underlayment

by leaving a 1”-1.2" inch (25-30mm)from the vinyl

and step edge for the installation of the stairnose

stairnose installation 1

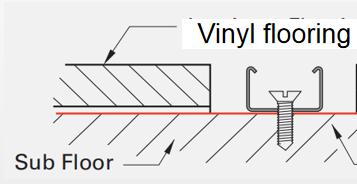

Step 2


Center the U-Track and Shim between the space floors and and step edge. screw them to the sub floor by using screws.


stairnose installation 2

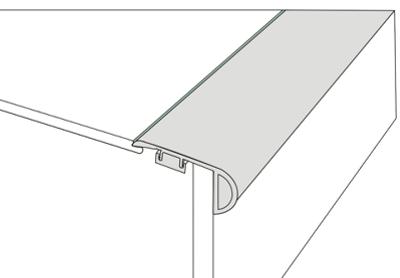

Step 3


Gently press the molding into the track starting from one end to the other just like you would close a Zip-Lock bag.1”!!! Do not try to push the entire molding in all at once by just pressing it in from top !!!


stairnose installation 3


flooring trims01flooring trims02flooring trims03flooring trims04flooring trims08flooring trims07
