You are here: Home / Products / Flooring Trims / T-Molding / Flooring Trims for Vinyl Flooring

Product Category

Flooring Trims for Vinyl Flooring

Flooring trim T-moldings can be made by real PVC , WPC or SPC
100% virgin materials
T-Moldings are commonly used in doorways to join two floors in adjoining rooms. Also recommended when making a transition from vinyl floor to another floor that is approximately the same height.
Availability:
Quantity:
sharethis sharing button
  • EH-TM1-KW005

  • Eco Home

category:  Flooring trim

Product :  T-molding with track


T-Moldings are commonly used in doorways to join two  floors in adjoining rooms. Also recommended when making a transition from  floor to another floor that is approximately the same height.

Surface Material: Wearlayer+decorative film

Core Material: PVC/WPC/SPC

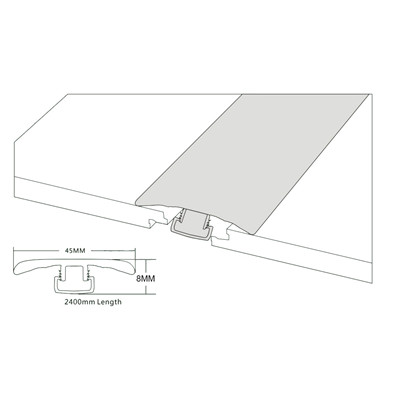

T-molding drawing


Core Material PVC/WPC/SPC
Wearlayer  0.3mm/12mil
Product width(mm) 45mm
Product thickness(mm)  8mm
Product length(mm) 2400mm/94"
For flooring thickness 4-6mm
Residential Warranty in years 5
Commercial Warranty in years 2
Quantity per carton (pcs) 25
Packing size (L*W*H) cm 242*17*8.5
CBM per carton 0.035CBM


Step 1


Install the flooring planks including the underlayment by

leaving a 1"-1.2” inch (25-30mm) gap for the installation

of the T-molding.

T molding installation 1




Step 2


Center the U-Track and Shim between the two laminate floors and screw them to the sub floor by using screws.

T molding installation 2


Step 3


Gently press the molding into the track starting from one end to the other just like you would close a Zip-Lock bag.1”!!! Do not try to push the entire molding in all at once

by just pressing it in from top !!!

T molding installation 3


flooring trims01flooring trims03flooring trims02flooring trims04flooring trims06flooring trims07flooring trims08
