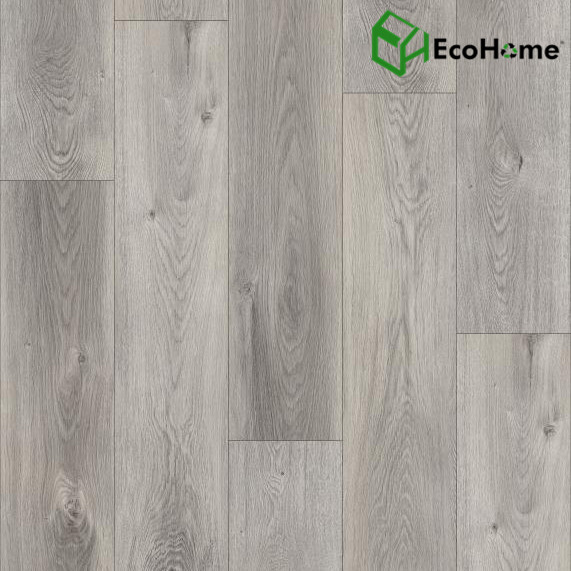

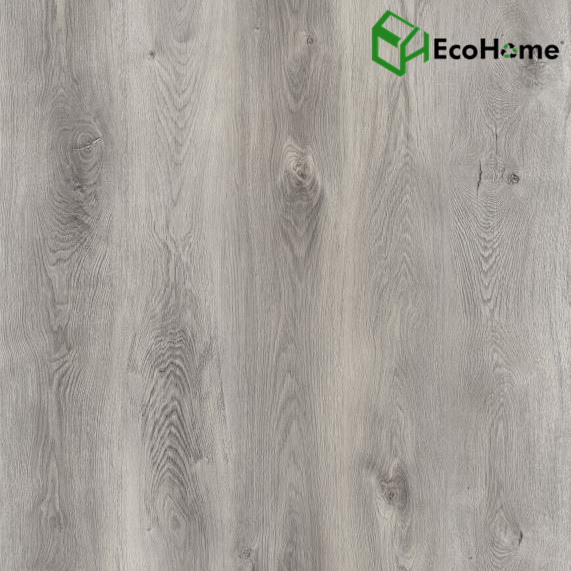

7.5mm EIR SPC Flooring

Advantage of SPC Flooring

•  100% waterproof, Stain-resistance

•   Fireproof

•   Anti-Scratch

•   Slip resistance

•   Easy to Installation and maintenance

Installation Guideline for SPC flooring

How to install the SPC Flooring?

1. Adjust row so end cut is not less than 8".

2. Use shims to allow 3/8" expansion gap between the planks and the walls, or stationary interior room objects, so there is room for normal expansion and movement.

3. Starting from the LEFT with the tongue facing the wall,carefully place the first board in place.

4. Align the next piece by overlapping the short end of the first board, Engage the short end at a 45° angel of the tongue and groove. The board must be flat to engage completely. Tap lightly into place by using a rubber mallet and tapping block to firmly lock short end. Continue in this manner until reaching the final plank in the first row.

5. Cut the final board piece to length.

6. Begin the second row with the cutpiece from the first row. If the cut piece is shorter than 8" (20cm), do not use it. Instead, begin with a new board to the left as necessary to align the edges of the end joint of the first row. Carefully push the board down until the gongue and groove lock together on the long side and ends.

7. Position the first board of the second row in place by engling it up slightly, pushing forward and interlocking the long side of the tongue. Slide the board to the left as necessary to align the edges of the end joint of the first row.

   Carefully pushthe board down until the tongue and groove lock together on the long side and ends.

8. Install second board of the second row (same as step 4 above). Slide close to the end joint without touching it. Ensure board lays flat.

   Attach a scrap piece of floor to bridge gap between ends of planks.

9. Tap firmly but gently on end joint with a rubber mallet and tapping block to fully engage short end. Before moving on the next board, ensure the end joints are flush and tight.

10. Install the remaining boards and rows in the same container.

11. Cut the last board to size. If necessary, complete the tight fit by tapping the board into place with a pull bar.

12. Whenever practical, use cut pieces from previous rows as the starter board to reduce waste.

13. Maintain 8" spacing between end joints after the first rows for best apperance.


SPC Flooring Specification
